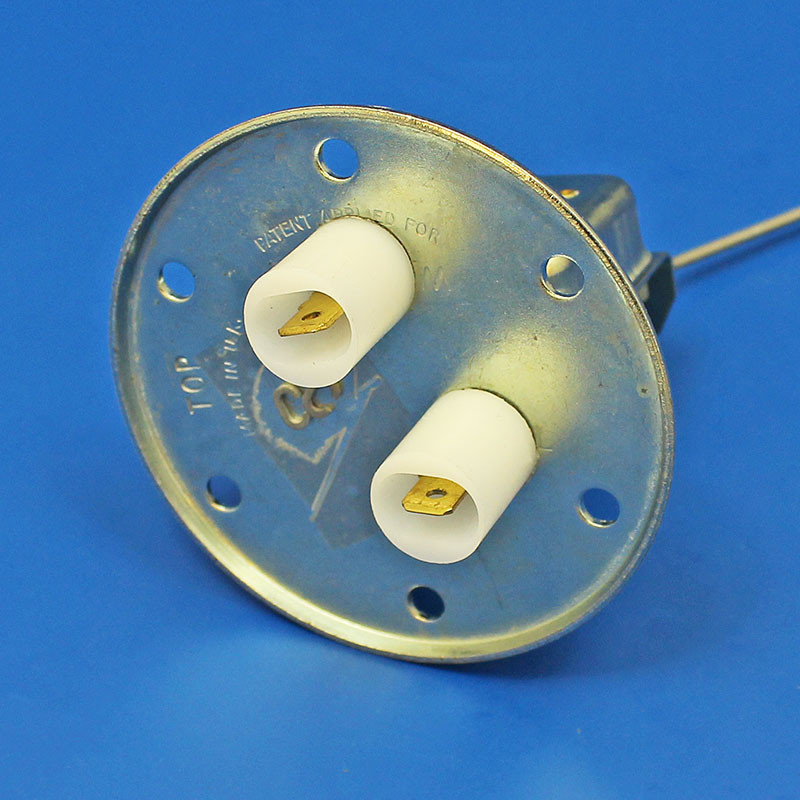

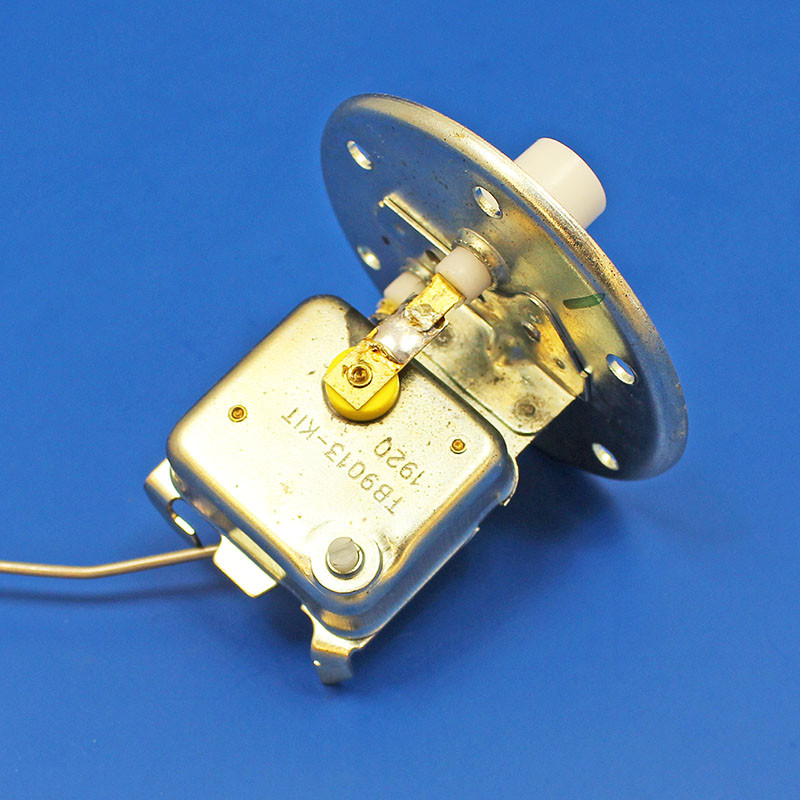

Sender Units - Sender for Smiths Classic Fuel Gauges - 12V, top mounting

SKU: TS1

Sender for Smiths Classic Fuel Gauges - 12V, top mounting

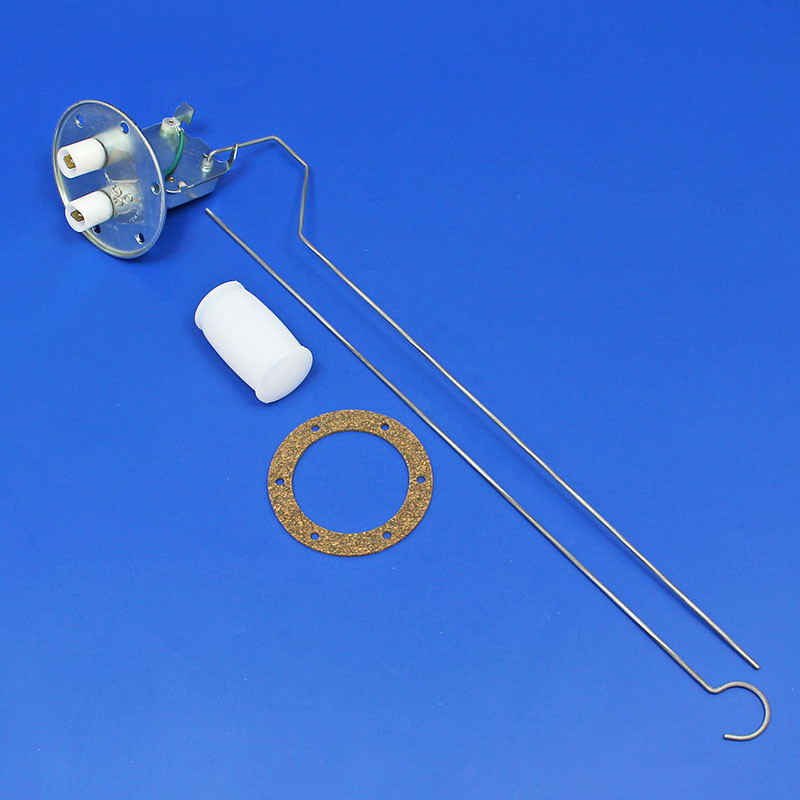

Top Mounting. Standard SMITHS fitting six holes on 60.33 mm pitch circle diameter. Gasket supplied. The arm length is adjustable for tanks of depths/diameters between 203 mm and 610 mm. After adjustment, the arm is secured with clips and soldering. Fitting and wiring instructions are provided. You will need to run a wire from the sender to earth. For use with Smiths Classic Fuel Gauges. 12 volt. The resistance range is approx  20 ohms (Full) to 230 ohms (Empty) - sometimes called American scale. Suitable for Bimetal type gauges. Please see installation instructions to check suitability for your vehicle.

@ £48.47/  Each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
Total: £

Fitting instructions

TS1 Fuel Tank Sender

Fitting instructions for TS1 Fuel Sender - 12V, top mounting

Files
