Vintage - Rear 'D' lamp LED (equivalent to the Lucas ST51 lamp with split lens) with INDICATOR conversion - Black finish - FITTED LED LIGHT BOARD

Rear 'D' lamp LED (equivalent to the Lucas ST51 lamp with split lens) with INDICATOR conversion - Black finish - FITTED LED LIGHT BOARD

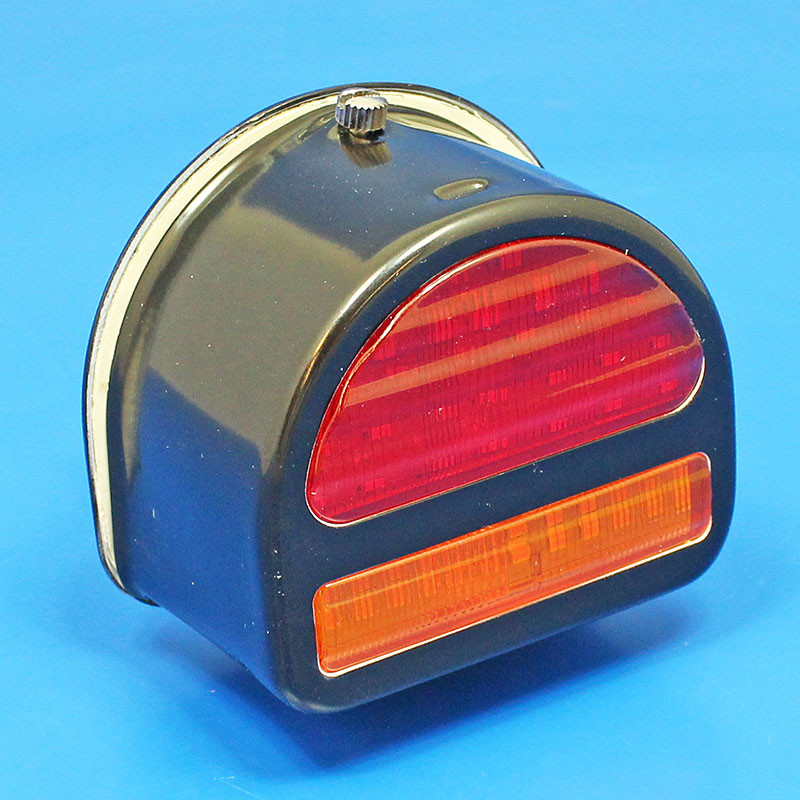

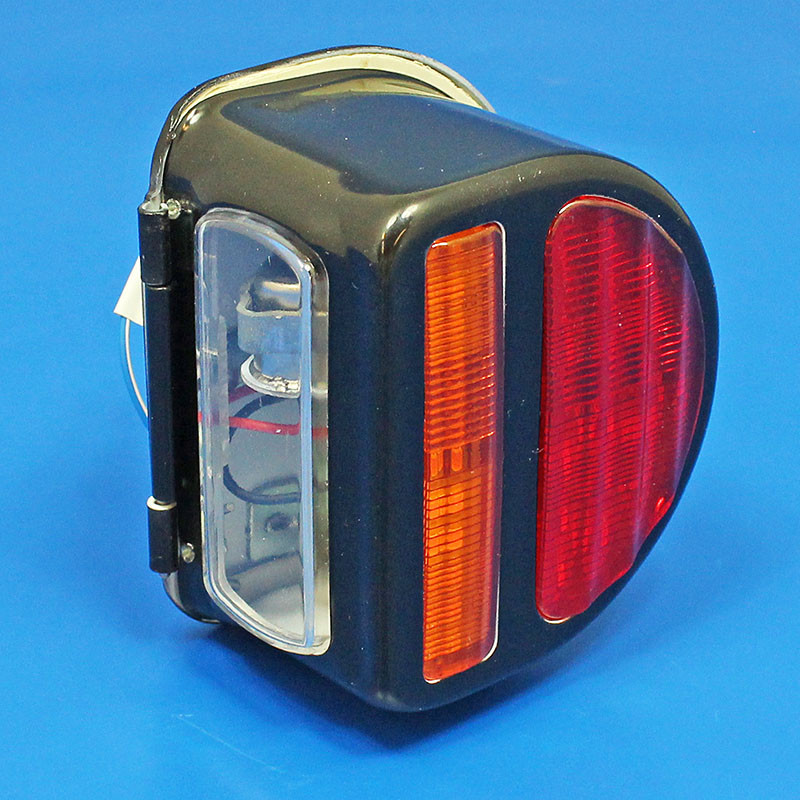

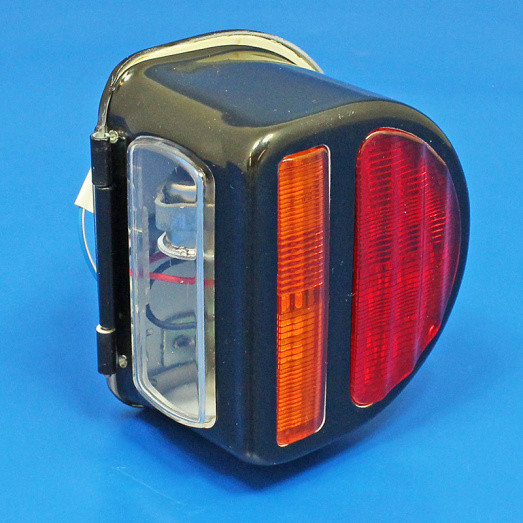

Black split lens rear 'D' lamp, equivalent to the original Lucas ST51 type lamp, though converted for combined stop, tail, number plate illumination and indicator/turn signal function. fitted with an all in one LED light board and split Red/Amber lenses giving Stop, Tail, INDICATOR & number plate illumination operation.

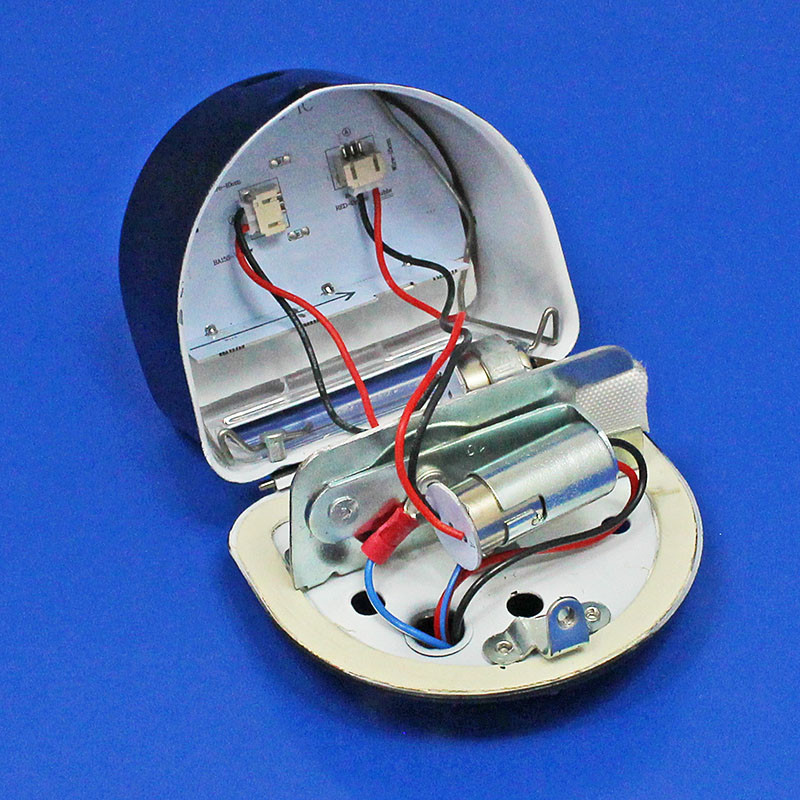

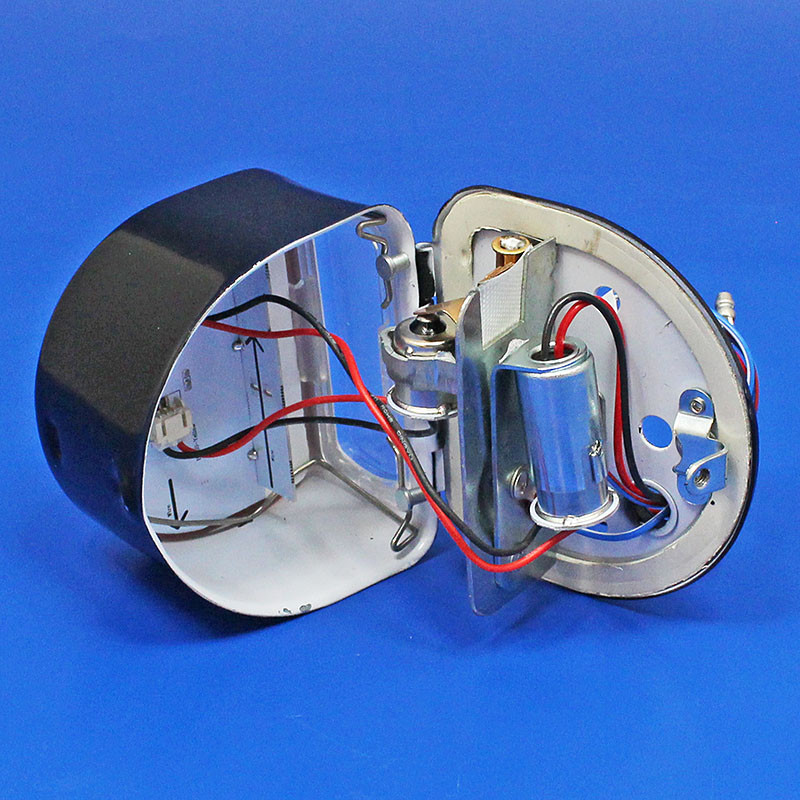

On board electronics make this product suitable for 6V &12V vehicles, either Positive or Negative earth. The product features a main, D-shaped light board with two sections of LEDs - one RED and one AMBER - that locates between the original lens and the lens retaining wire. An additional WHITE LED light board is attached perpendicular to the main board to provide number plate illumination, though the assembly is suitable for D lamps with or without a number plate illumination window.

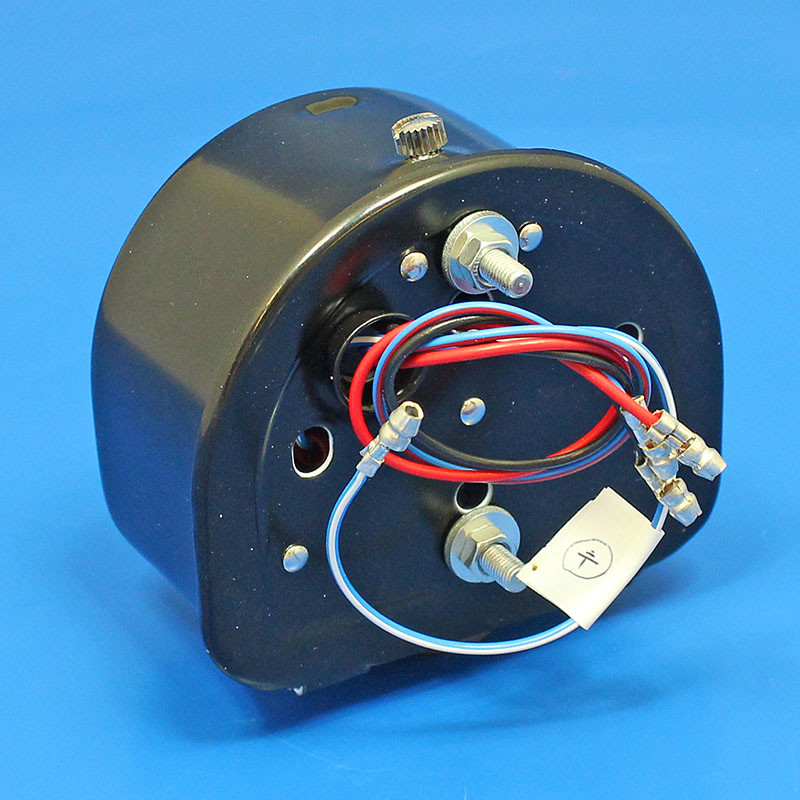

The board is fitted with one bulb base BA15D connector on 15cm connecting wires and one BA15S bulb base connector on 10cm connecting wires. One terminal of the BA15D base illuminates the Tail light (first brightness RED) and the Number Plate light (WHITE). The second terminal illuminates the Stop light (second brightness RED). The BA15S connection illuminates the AMBER indication/turn signal LEDs.

These boards have a very low power requirement and provide great all over lens lighting from 27 RED LEDs and 24 AMBER LEDs, with the fast response time/illumination under braking characteristic of LEDs - plus good distinction between STOP and TAIL brightness's. Fully assembled and ready to fit. Please note that the indicator function requires use of an electronic flasher unit e.g. LEDFLASH3

Video comparison of incandescent wedge bulb version and LED panel version.
