Fuel and Oil Push Taps - Fuel/oil Push On/Off tap - 1/4" BSP tank side, 1/4" BSP outlet

Fuel/oil Push On/Off tap - 1/4" BSP tank side, 1/4" BSP outlet

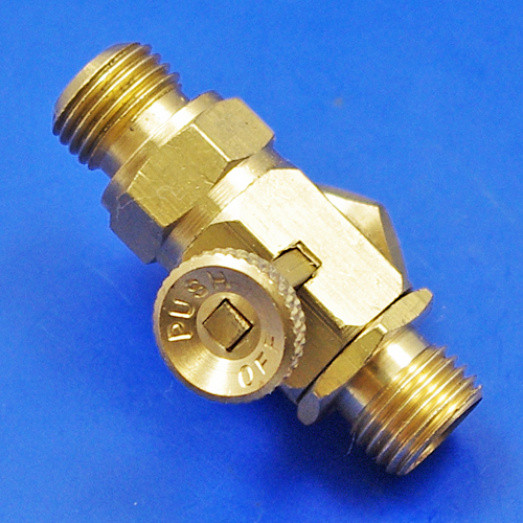

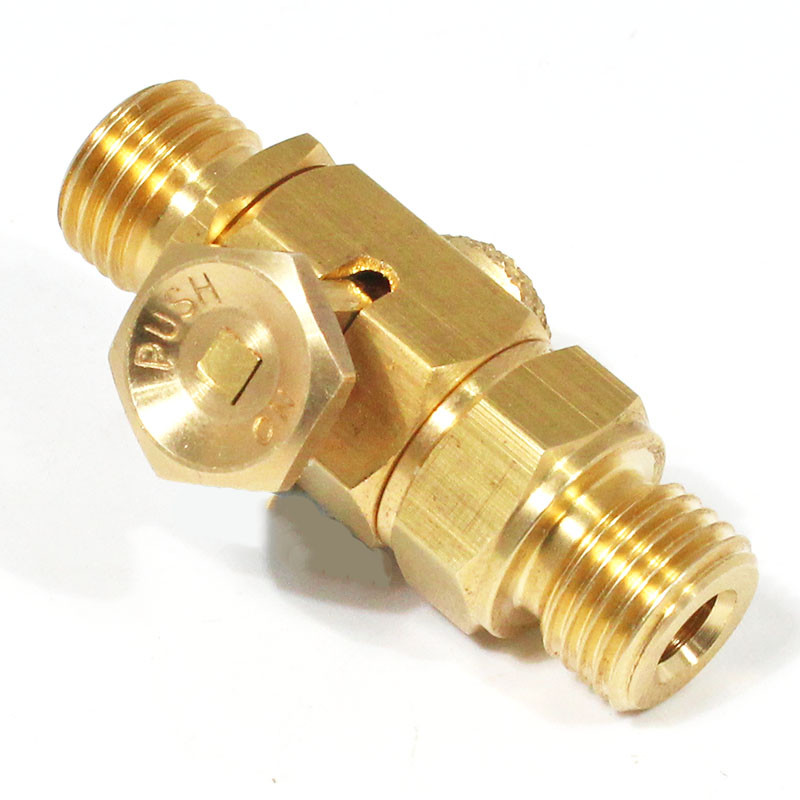

Hexagonal push on/off in line tap with 1/4“ BSP male threads. 1/4" BSP thread tank side, 1/4" BSP outlet thread with 60 degree cone seat for solder nut and nipple type fittings. Overall dimensions 50mm long (including threads) and 16mm diameter. This tap is supplied bare, please order fittings as required separately. A solder type nut and nipple can only be fitted to the outlet end. The 1/4" BSP thread under the hexagon has a seating flange, so can be screwed into a tank.
