Fuel and Oil Push Taps - Fuel/oil Push On/Off tap - 1/8" BSP tank side, 1/4" BSP outlet

Fuel/oil Push On/Off tap - 1/8" BSP tank side, 1/4" BSP outlet

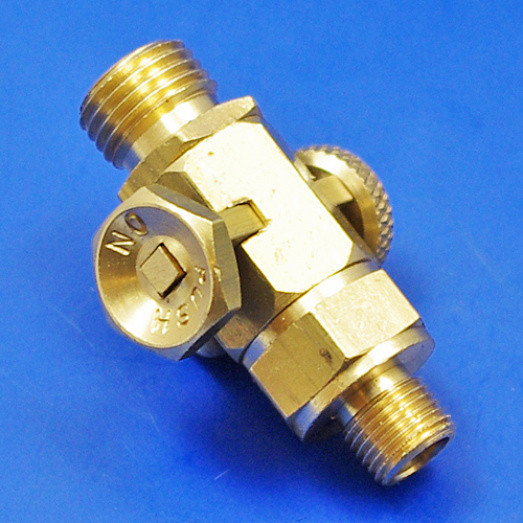

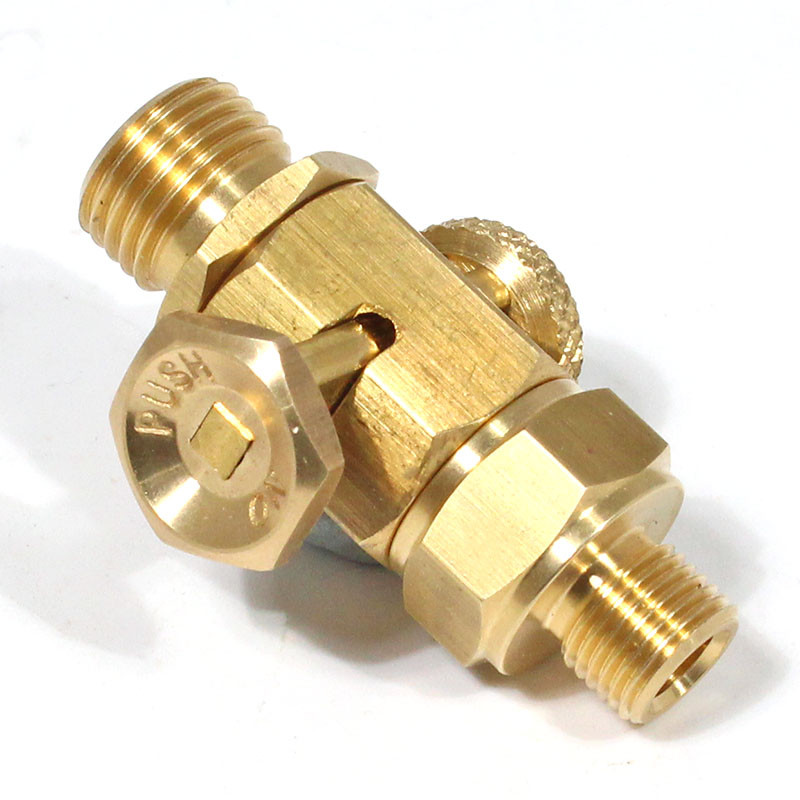

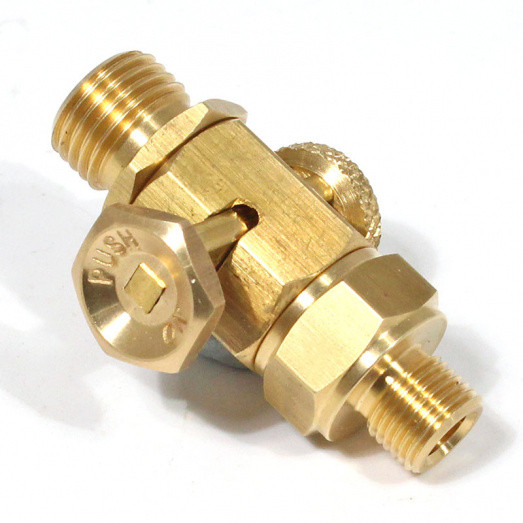

Hexagonal push on/off in line tap with 1/8" and 1/4“ BSP threads. 1/8" BSP thread into tank, 1/4" BSP outlet thread with 60 degree cone seat for solder nut and nipple type fittings. Overall dimensions 50mm long (including threads) and 16mm diameter. This tap is supplied bare, please order mating fittings as required separately. Solder type nut and nipples can only be fitted to the 1/4" BSP end. The 1/8" BSP thread under the hexagon has a seating flange, so can be screwed into a tank.
