Wiper Motors - Wiper motor - Powerful, windscreen mounted, 12V

Wiper motor - Powerful, windscreen mounted, 12V

Powerful, robust, silent 12 volt wiper motor with 110 degree sweep, which will drive any wiper set. Mounting hole 10mm, shaft size 6mm, matt black plastic cover with switch built in. Shaft length of 4.7" easily shortened. Body approximately 80mm wide x 52mm high x 76mm deep. As mounted with the drive upper, the electrical connections are on the right side viewed from inside the vehicle. Please note - the metric size shaft will require turning to fit or shimming for the imperial size (3/16" and 1/4") wiper arms we offer. Offered with single threaded sleeve mounting or CWX mounting arrangement.

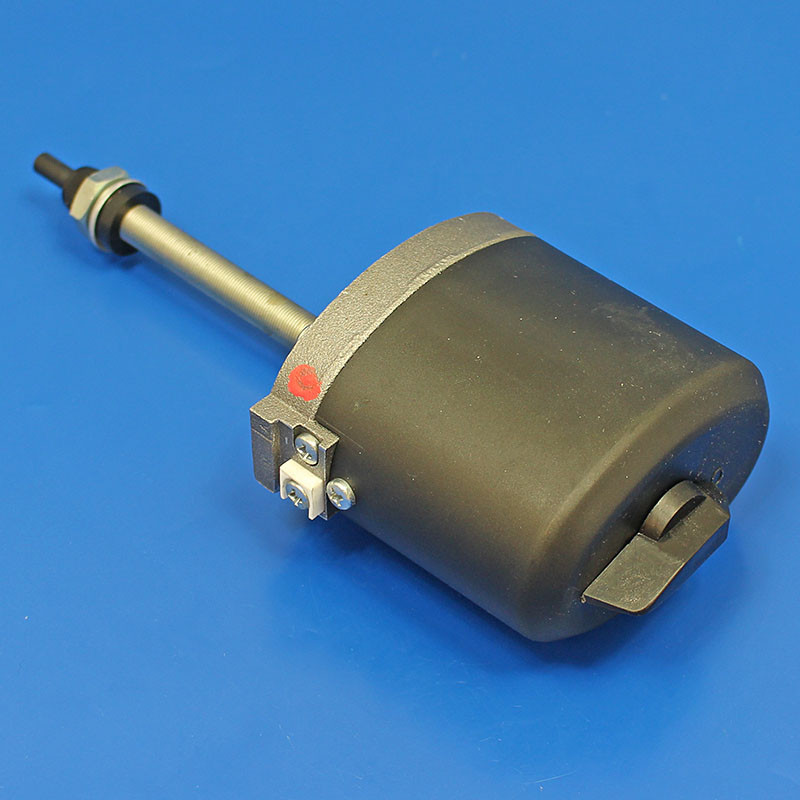

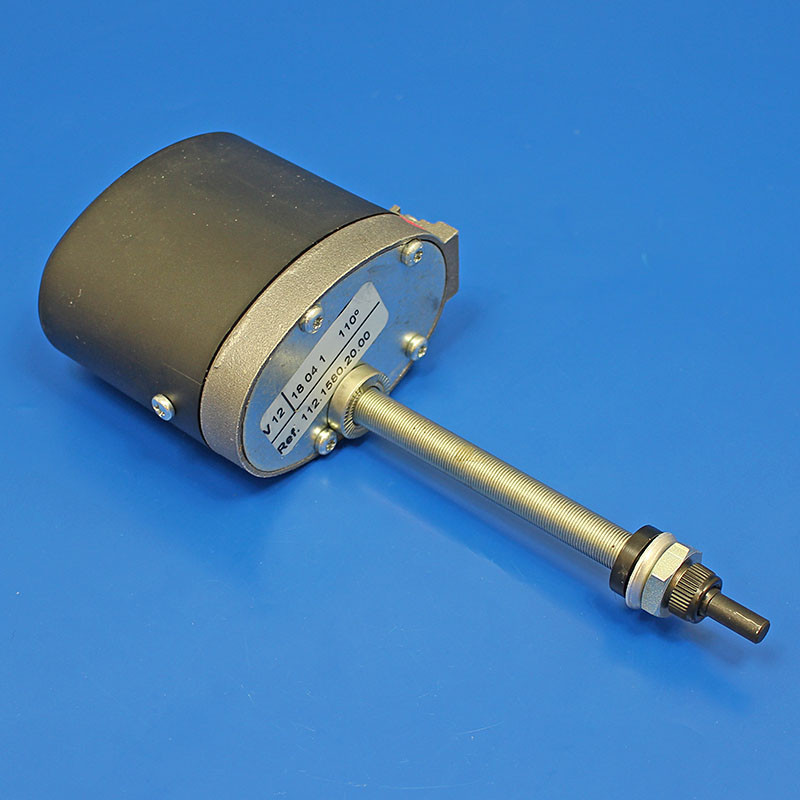

479.12 - Wiper motor - Powerful, windscreen mounted, 12V

Standard mounting, with threaded sleeve around 6mm drive shaft. Supplied with rubber washer and nut set for threaded shaft.

Quantity@ £155.61/  each  (exc. VAT)  (inc. VAT @ 20%)

Subtotal:

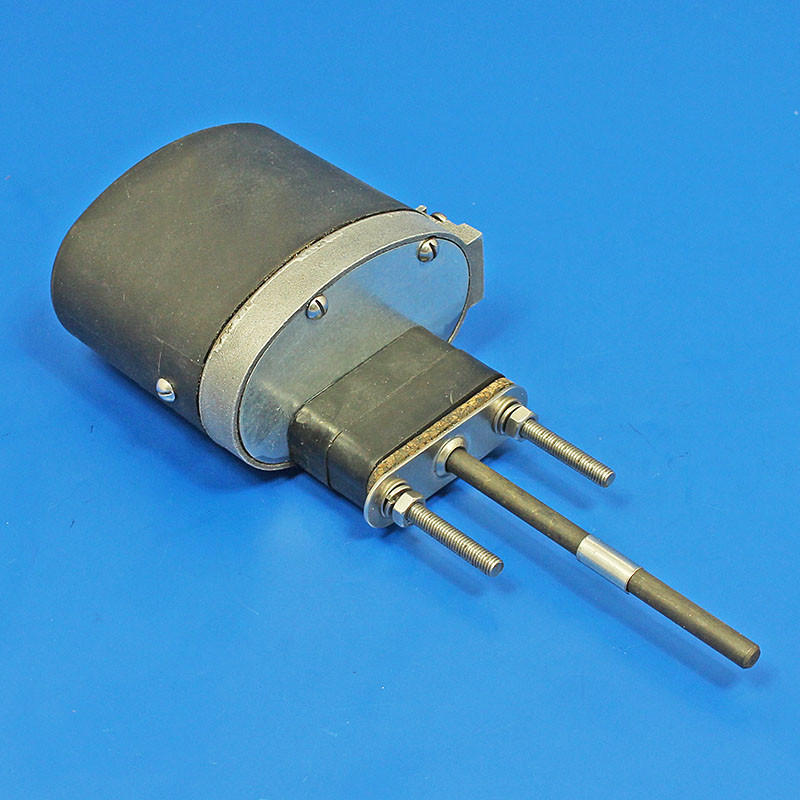

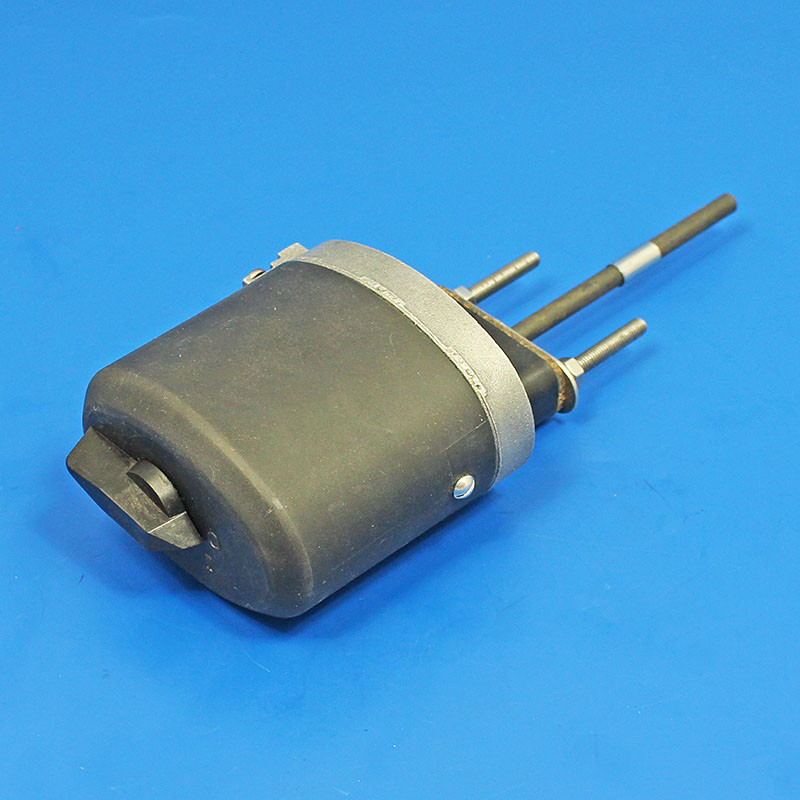

479.12CWX - Wiper motor - Powerful, windscreen mounted, 12V with CWX type mounting

Our most powerful wiper motor, modified to feature a CWX style mounting arrangement. Supplied with two plastic spacer blocks, cork gasket and chrome plated brass face plate. Side mounting studs supplied with nuts and washers - 38mm between centres, extending 60mm out from the motor face plate. Main drive shaft 4.7" long and 6mm in diameter - will require shim (supplied) to fit wiper arms with 1/4" socket/collet fitting. A great alternative to the no longer available CWX motor.

Quantity@ £195.61/  each  (exc. VAT)  (inc. VAT @ 20%)

Subtotal:

Total: £ Add to Cart
