Wiper Motors - Wiper motor - Windscreen mounted, auto-park, 6 & 12V, CWX mounting option

Wiper motor - Windscreen mounted, auto-park, 6 & 12V, CWX mounting option

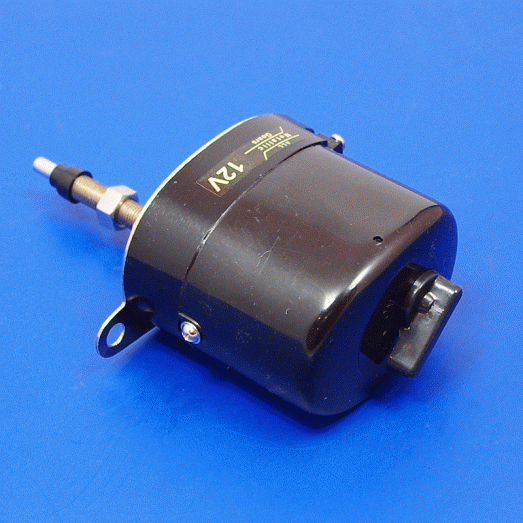

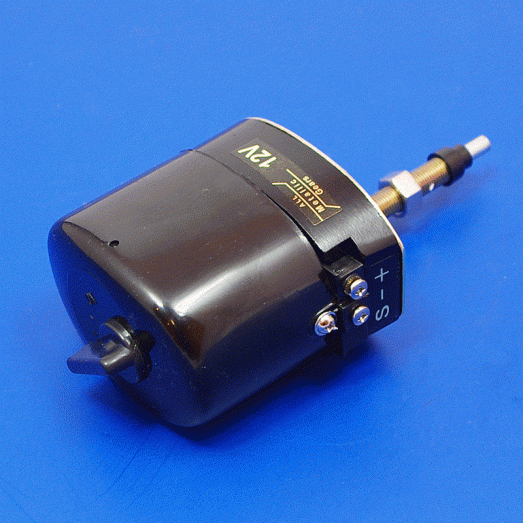

Practical modern wiper motor for continual use, 6 volt or 12 volt. Dull black plastic cover. On/Off switch with 'auto-park'. Central drive offtake 6mm. Requires an 9mm shaft hole through screen, with one or two stabilising mounting points fitted with 6mm ID rubber grommet(s) at centre(s) approx. 45mm from the mounting shaft centre. Body approx 89mm deep overall including switch. Oscillating 110 degree sweep. Length of thread approx 56mm. Please note that this motor has a 6mm shaft and all our shaft fitting wiper arms are for imperial sizes (1/4" and 3/16") - so packing with thin shim material may be required. CWX style mounting option also available, where the front plate is fitted with two mounting studs at 38mm centres either side of the drive shaft, similar to the original Lucas CWX motor mounting arrangement.

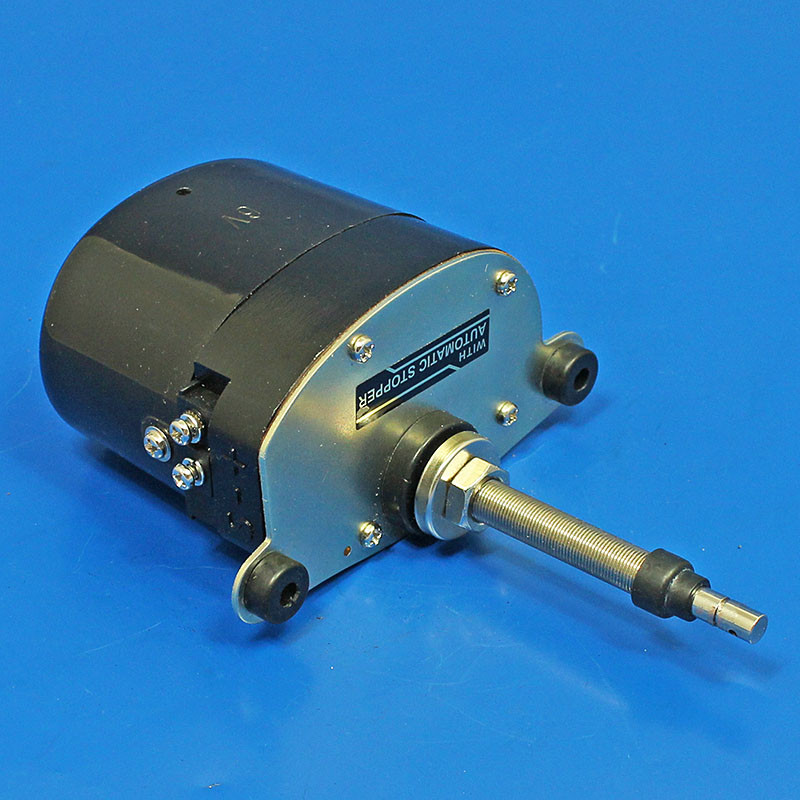

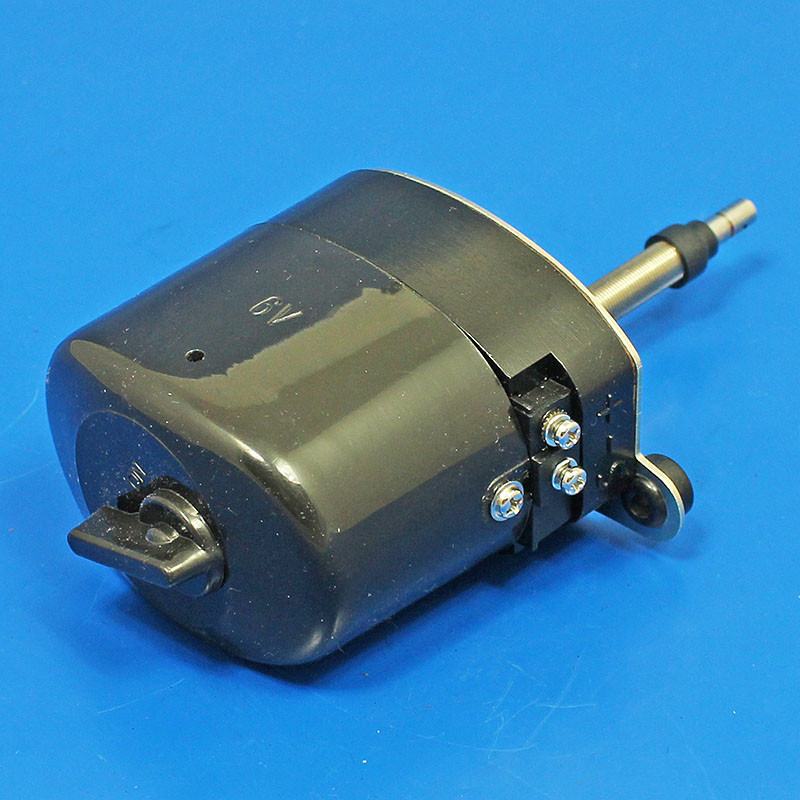

386.6 - 6V motor with standard mounting

Quantity@ £75.32/  each  (exc. VAT)  (inc. VAT @ 20%)

Subtotal:

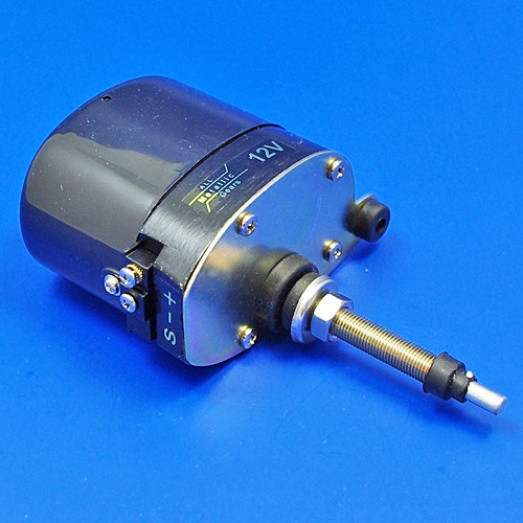

386.12 - 12V motor with standard mounting

Quantity@ £62.32/  each  (exc. VAT)  (inc. VAT @ 20%)

Subtotal:

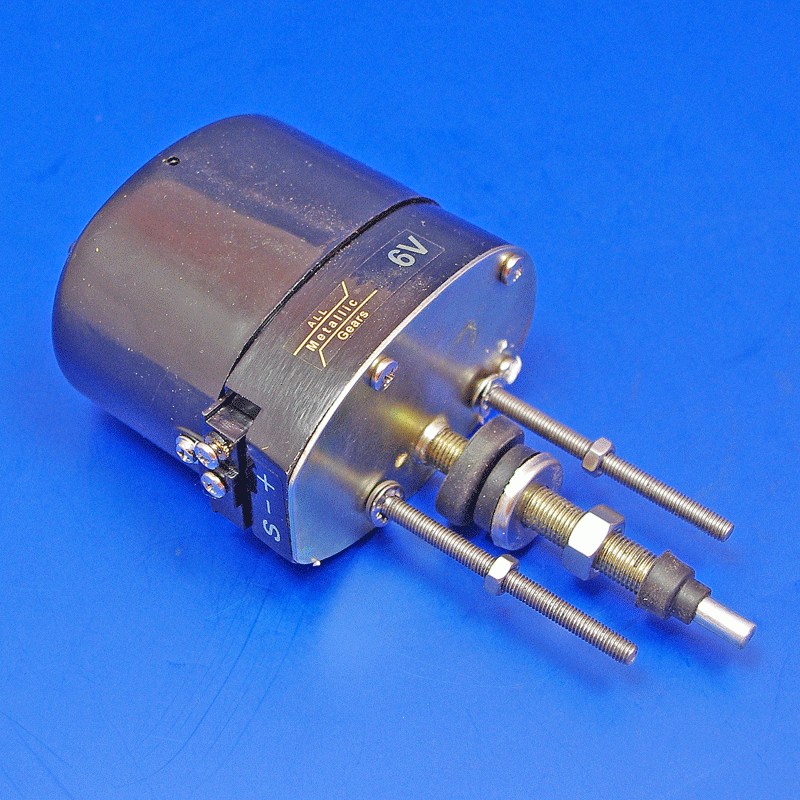

386.6-CWX - 6V motor with CWX type mounting

Front plate modified with two mounting studs at 38mm centres either side of the drive, similar to the Lucas CWX motor.

Quantity@ £95.35/  each  (exc. VAT)  (inc. VAT @ 20%)

Subtotal:

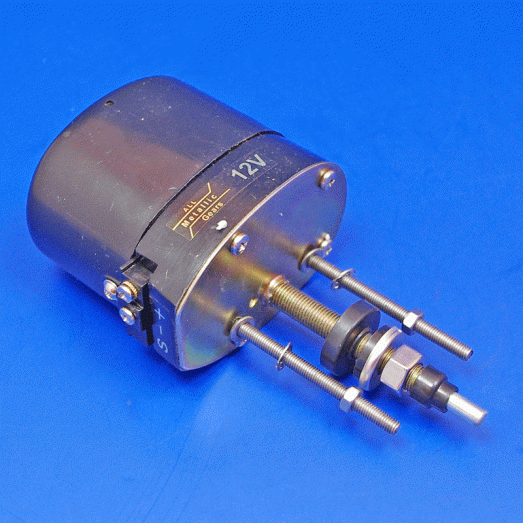

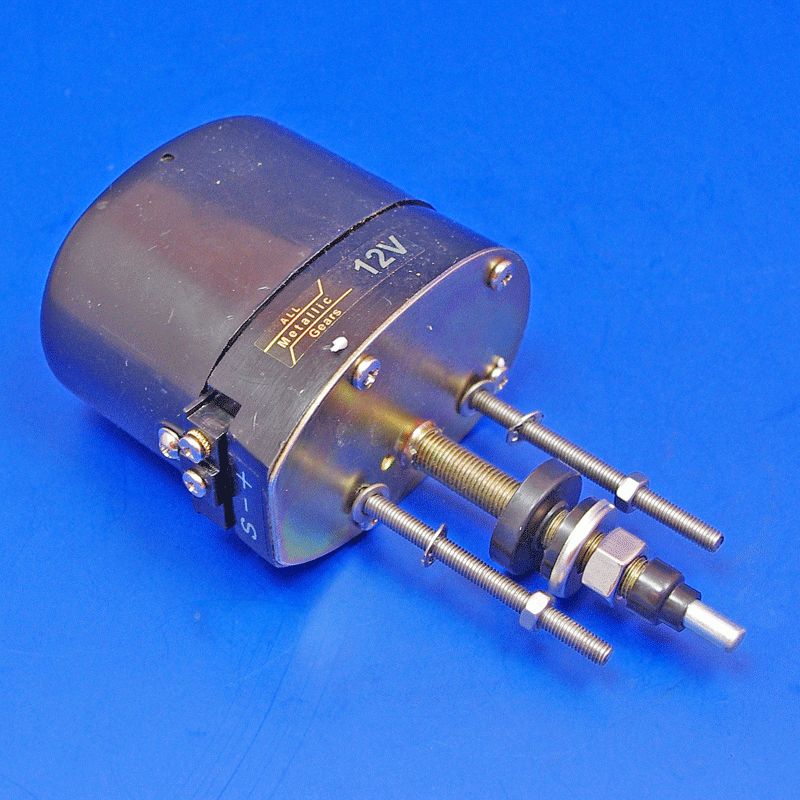

386.12-CWX - 12V motor with CWX type mounting

Front plate modified with two mounting studs at 38mm centres either side of the drive, similar to the Lucas CWX motor. For an uprated wiper motor with the same CWX type motor mounting please see part number 479.12CWX

Quantity@ £82.35/  each  (exc. VAT)  (inc. VAT @ 20%)

Subtotal:
