Fuel and Oil Taps - Straight in line tap - 1/4“ BSP threaded inlet with filter, 1/4" BSP outlet with solder nut and nipple

Straight in line tap - 1/4“ BSP threaded inlet with filter, 1/4" BSP outlet with solder nut and nipple

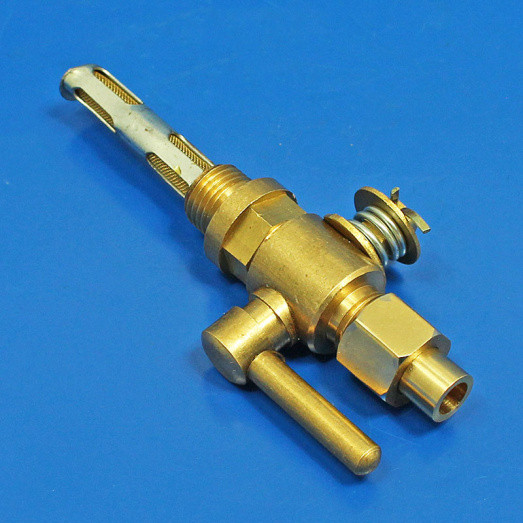

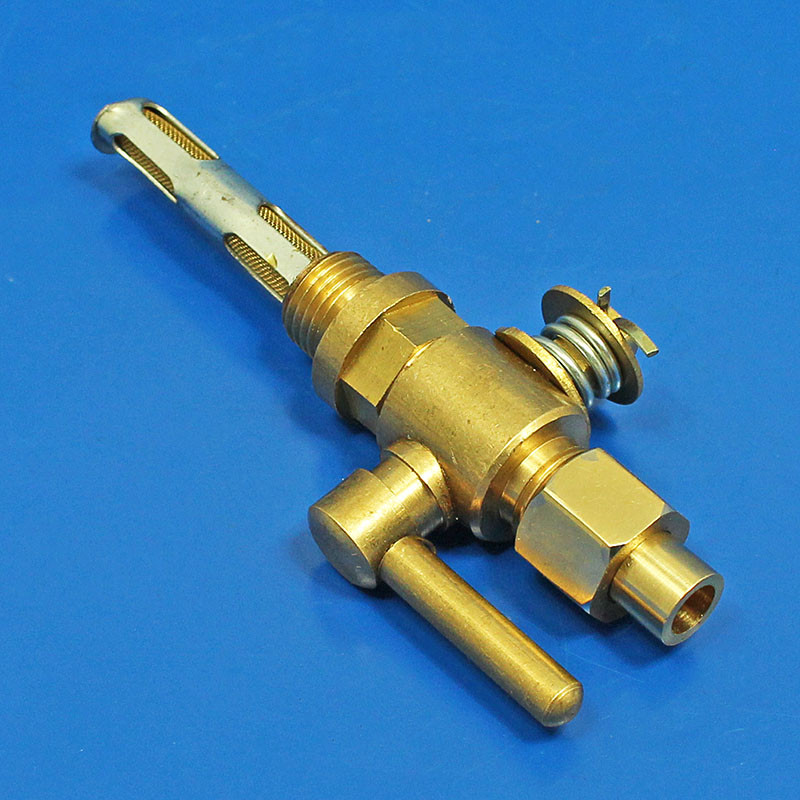

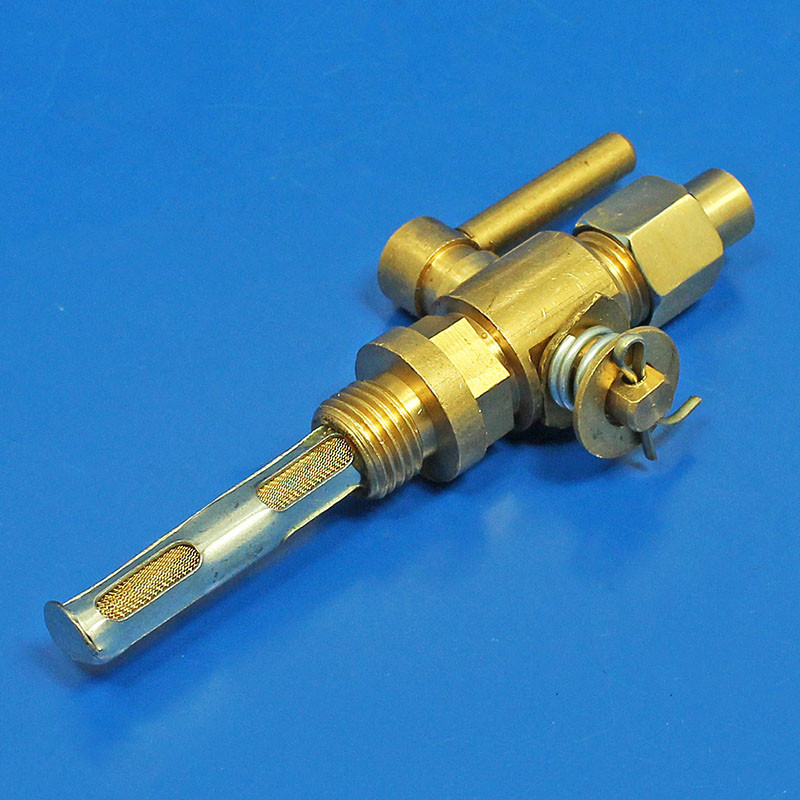

Straight in line tap with 1/4" BSP threads on the inlet and outlet - the inlet is fitted with an integral filter and the outlet has a 60 degree cone seat and is fitted with a 1/4" BSP solder nut and nipple for 1/4" OD pipe. Body length (including threads, excluding filter and solder nut and nipple) 45mm and diameter 19mm. Solder type nut and nipples can only be fitted to the inlet of the tap. Please note that the inlet has a flat seat under the thread, which can be screwed into a tank and sealed with a folded copper washer.
