Lamp Accessories - Headlamp rim catch - 2BA thread, used with 13016-A and 641

Name: Headlamp rim catch - 2BA thread, used with 13016-A and 641
SKU: 13016-B
Price: 14.46 GBP
Availability: InStock

SKU: 13016-B

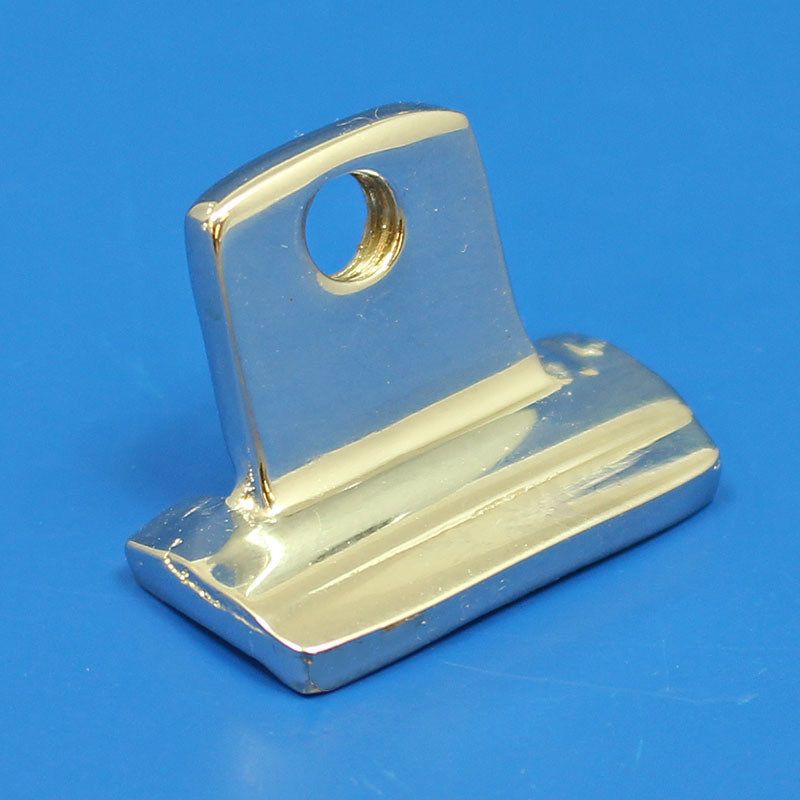

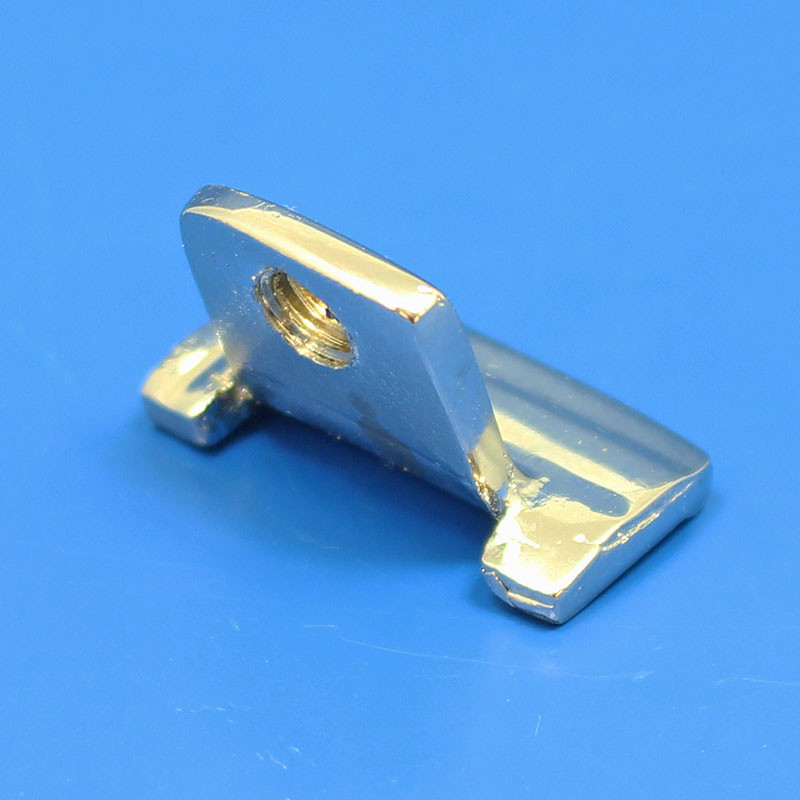

Headlamp rim catch - 2BA thread, used with 13016-A and 641

Chome plated bronze bracket for Lucas type headlamps such as the L140. Fits inside the headlamp shell rim - the tongue fits through the slot which then accepts the rim fixing screw 641 in a 2BA threaded hole, with the base of screw 641 pulling on to catch 13016-A, located in the lamp rim. Dimensions 24mm x 13mm, threaded screw tongue 15mm wide x 13.5mm tall.
